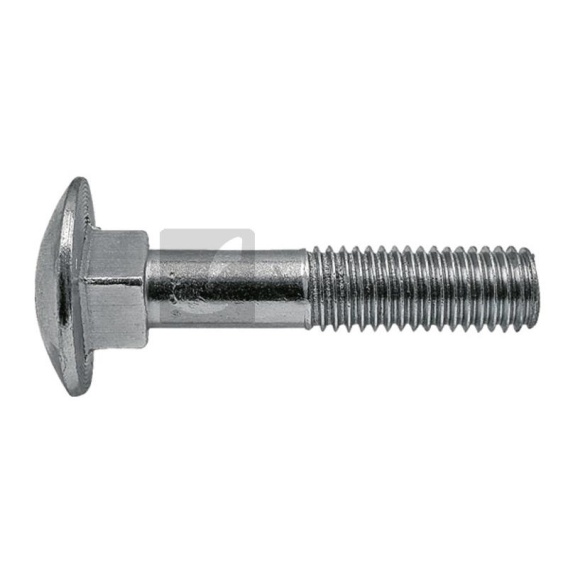

Śruba zamkowa M8x30 DIN 603
Łeb: z łbem grzybkowym
Ø D (mm): 8
Ø łba (mm): 20,65
b (mm): 22
v (mm): 8,58
Wytrzymałość na zerwanie (N/mm²): 800
DIN: 603
Typ: śruby podsadzane (śruby zamkowe)
Powierzchnia: ocynk galwaniczny
Wytrzymałość: 8.8
Skok gwintu: 1,25
Kształt łba: płaski, okrągły łeb
Materiał: stal
F (mm): 5,6
Typ gwintu: gwint standardowy
Długość (mm): 30
Wysokość głowicy (mm): 4,88
Gwint: M8
Symbol: 487603090
Aebi
Rasant Puma
1700, 2400, 3400, 5400, 5500, 6000,
Agria, E 250, E 6, E 7, E 8, E 9, E 90, E 900, G 107 D, Gepard, M 500, M 520, M 6, M 700, M 710, Puma, Tieger
0300, 1700, 2300, 2400, 3300, 3400, 3400 KL, 3500, 3600, 3600 BM, 3900, 5300, 5400, 5400 KL, 5500, 5600, 6000, 7700, AF 01, Alpina, Alpinist II, BC 90, BM 3600, BM 5, Bambi, Base, Beby, Bison, Grizzly, Puma, Taifun, Unihamster
Barbieri
Bambi, Beby, E 250, E 900, Gepard, Puma, Tieger
BCS
715, 720
Benassi
F 201, FC 202 3V, FC 204 3V, FC 206 3V, MF 221
Bertolini
131, 134, BM 250, E 5, S 100, S 101, S 90, S 91
Bucher
M 100 / M 100 K, M 150, M 200, M 300 / M 300 K, M 50, Record 25/27/38/39, S 100, S 101, S 50, S 60, S 90, S 91
Carraro
Carrarino, Carrarino 7 / 10
Cavalli
Base
Echo
E 100, HM 50, M 350, M 450
Eumot
E 100, E 250, E 900, M 350, M 450
Eurogarden
Bambi, Beby, HM 50, Jolly-Junior, Jolly-Professional, Jolly-Super
Eurosystems
BM 1150, BM 260, E 10, E 200, E 300, E 450, E 6, E 7, E 8, E 9, E 90, Elite 6, Elite 7, Elite 9, Euro, Falcetto 2, Fior-Fiore, G 107 D, G 55, G 85, G 95, GF 2, Hopper, M 50, M 500, M 520, M 6, M 700, M 710, MFC 223, PT 233, Swiss, Universo
Ferrari
E 200
Fort
180, 183, 280, Cri-Cri, Herkules, Micro, Minigarden, UE 600
Goldoni
100, 600, FC 85, FC 95, GF 4, Jolly-Junior, Jolly-Professional, Jolly-Super, K 2, Mountain
Grillo
FC 85, FC 95, Falcetto 2, Falcetto 4, Fior-Fiore, G 55, GF 2, GF 4, Mountain
Gutbrod
KMP 650, MF 70, U 53
Hako
MFC 150, Variette S
Hödl
Bambi, Beby, MFC 200
Holder
E 10, E 200, E 300, E 5, E 6, E 7, E 8, E 9, E 90, M 500, M 520, M 6, M 700, M 710, MFC 220
Irus
131, 134, BM 250, BM 260, E 6, E 7, E 8, E 9, E 90, ER, KM 340, KMR 3, M 500, M 520, M 6, M 700, M 710, Micro, S 100, S 101, S 90, S 91
Köppl
E 6, E 7, E 8, E 9, E 90, Hopper, M 500, M 520, M 6, M 700, M 710
Kubota
BM 260, E 6, E 7, E 8, E 9, E 90, M 500, M 520, M 6, M 700, M 710
Kunzelmann
Euro
Moty
E 6, E 7, E 8, E 9, E 90, M 500, M 520, M 6, M 700, M 710, Universo
Nibbi
E 6, E 7, E 8, E 9, E 90, G 519, G 619, M 500, M 520, M 6, M 700, M 710, Swiss
Nussmüller
E 450, E 6, E 7, E 8, E 9, E 90, M 500, M 520, M 6, M 700, M 710, Puma
Perchtold
E 6, E 7, E 8, E 9, E 90, M 500, M 520, M 6, M 700, M 710, PT 233
Rapid
108, 203, 306, 306 L, BM 107, E 6, E 7, E 8, E 9, E 90, G 95, M 203, M 205, M 500, M 520, M 6, M 700, M 710, Mondo
Reform
110, 111, 112, 115, 116, 131, 316, 715, 720, 737, BM 1150, E 6, E 7, E 8, E 9, E 90, M 100 / M 100 K, M 150, M 200, M 300 / M 300 K, M 500, M 520, M 6, M 700, M 710, T 66, T 70
Robix
E 6, E 7, E 8, E 9, E 90, M 500, M 520, M 6, M 700, M 710, MFC 223
SEP
3600 BM, MFC 150, MFC 200
Solo
520, 522
Tielbürger
FM 560, T 55, T 56, T 60, T 66, T 70, T 75, T 77
Viking
FM 560, FM 561, FM 660, FM 661, HM 50, T 66, VX 5004, VX 6000, VX 8000
Vogel & Noot
Alpinist, Alpinist II, Plus
Yabe
131, 134, BM 250, S 101, S 90, S 91
